GAC-100 CONTAINER DESICCANTS
GAC-100 desiccant is a composite of a special kind of clay mineral
and calcium chloride.The clay mineral, made from a naturally
occurring deposits through precise treatments, has a large
water capacity with a unique three dimensional chain structure and a
special needle fiber crystal mould .in the high humidity
GAC-100 can work effectively as long as 40 days and remains
solid state while collecting 100% moisture of its own dry weight .
GAC-100 performs best at room temperatures between 30-50 ℃ and at
high humidity between 60to90% RH and will drop the relative humidity
in ocean-going containers to aroun 40% RH.
GAC-100 is packaged in double cover : the vacuum
bag (or barrier bag) and the cover stock
(spunbonded polyethylene material or TYVEK) which maintains an
acceptable adsorption rate. 2 or 10 or 100 packs of Gac-100
desiccants are put into a big vacuum bag (0.8mm nylong PE) for
transportation and storage.
GAC-100 has two types including granular shape and powder shape.
Chemical Composition
|
Clay Myineral |
Calcium Chloride |
| item |
index |
item
|
index |
|
sio2 |
54.78% |
CaCl2 |
min95% |
| al2o3 |
8.82% |
NaCl+KCL+MgCl2 |
max2.0% |
| MgO |
11.28% |
Alkalinity as Ca(oH)2 |
max0.3％ |
| CaO |
3.52% |
Insoluble in water |
max0.2 |
| Na2O+k2o |
0.054% |
PH in 10%CaCL2 SOLUTION@20
℃ |
7-9 |
| Fe2o3 |
2.88% |
~ |
~ |
Physical Characteristics
| item |
GAC-100G |
GAC-100P |
| Shape |
Granula |
powder |
| size |
1-5MM(95%) |
100-180mesh |
| color
|
Grey and white |
light brown |
| PH |
7-9 |
7-9
|
| Bulk density |
0.5-15g/ml |
0.5-0.735g/ml |
| Moisture
capacity |
80-100%
dry weight |
|
Moisture
capacity |
MAX 5% |

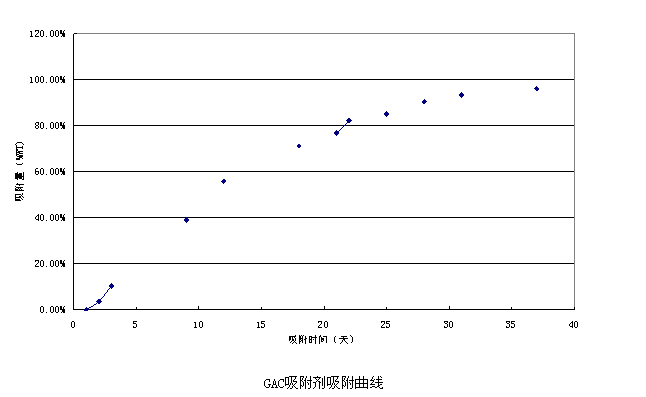

ADSORPTION
PLOT OF GAC-100
Package
.spunbonded
polyethylene material
/15g/20g/50g/100g/200g/500g/1000g/2000g
.Tyvek/15g/20g/50g/100g/500g/1000g/2000g
|
